Continous Die Head Plastic Blow Moulding Machine Double Station Pearly Lustre Layer

Model Number : BM-D

Certification : CE、ISO

Place of Origin : China

MOQ : 1 set

Price : Depends on different model

Payment Terms : L/C, T/T

Supply Ability : 10 sets / 90 days

Delivery Time : 120 days

Packaging Details : Without package or wooden

Automatic : Automatic

HS Code : 8477301000

Station : Double Station

Die Head : Continous Type

Application : Milk Bottles, Toiletries, Toys

Volume : 2L-20L

Contact Now

Description Of BM02D/05D/12D/20D :

This type of blow molding machine BM02D/05D/12D/20D series suitable for producing :

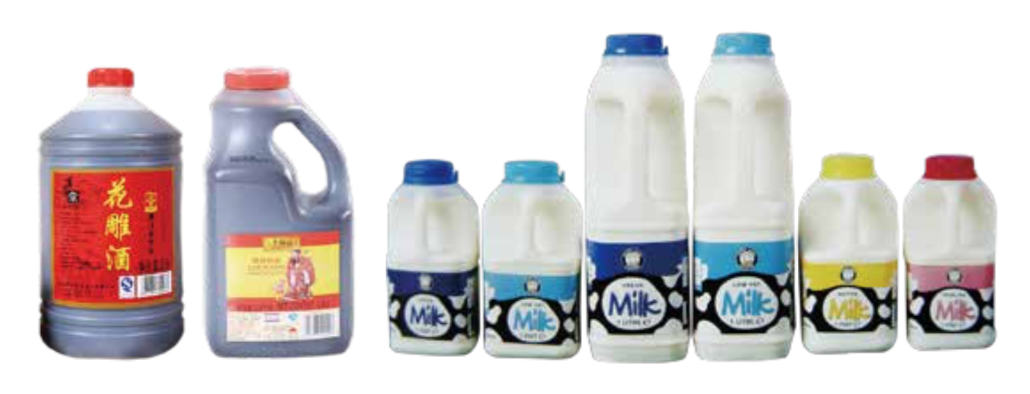

100ml-3000ml different size of milk bottle, soy sauce bottle, yellow wine bottle

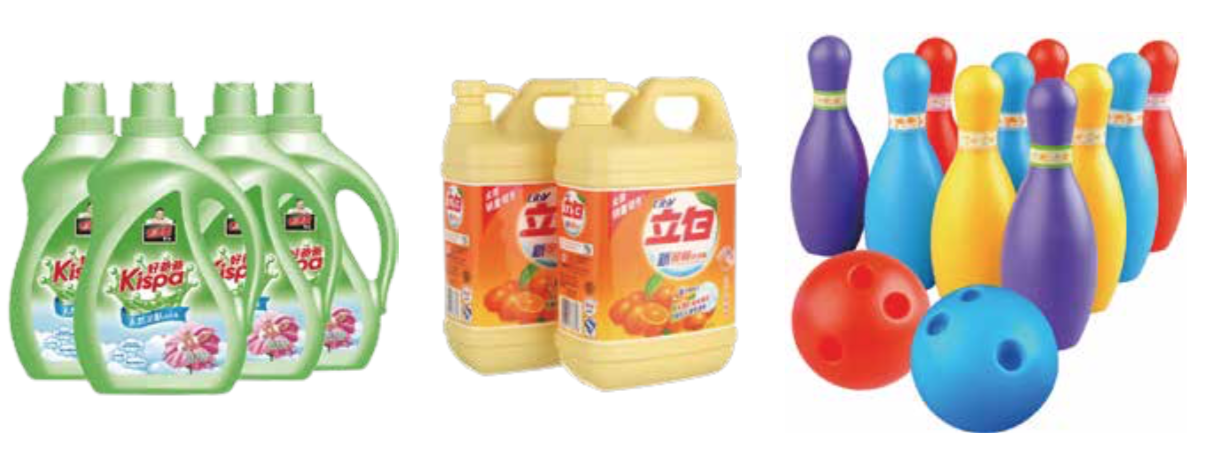

200ml-5000ml different size of shampoo bottle, body wash bottle, detergent bottles, other toiletries
Chrilden's toys

In order to fit your various products in this machine, we offer follow optionals :

Pearly lustre layer co-extrusion system
Product size : Selectable cavity of die head
Product metrial : Single station hydraulic screen-exchanger system
Customer demand : Auto-deflashing on-line, scrap conveying on-line, finished prosuct conveying on-line and others.

^{Main Technical Parameters}
^Model	^Unit	^JWZ-BM02D	^JWZ-BM05D	^JWZ-BM12D	^JWZ-BM20D
^{Max. Product Volume}	^L	²	⁵	¹²	¹⁰
^{Dry Cycle}	^Pc/h	^900*2	^700*2	^600*2	^600*2
^{Die Head Structure}	^{Continous Type}
^{Main Screw Diameter}	^mm	⁶⁵	⁷⁵	⁹⁰	⁹⁰
^{Max. Plasticizing} ^{Capacity (PE)}	^kg/h	⁷⁰	⁹⁰	¹⁶⁰	¹⁶⁰
^{Driving Motor}	^Kw	²²	³⁰	⁴⁵	⁴⁵
^{Oil Pump Motor Power}	^Kw	^7.5	¹¹	¹⁵	¹⁵
^{Clamping Force}	^KN	⁴⁰	⁷⁰	¹²⁰	¹⁶⁰
^{Max. Space Between Platen}	^mm	^138-368	^150-510	^240-640	^280-680
^{Platen Size W*H}	^mm	^286*330	^350*400	^450*500	^500*520
^{Max. Mould Size}	^mm	^300*350	^360*400	^500*520	^560*520
^{Platen Moving Stroke}	^mm	⁴²⁰	^450/520	^600/650	⁶⁵⁰
^{Heating Power Of} ^{Die Head}	^Kw	⁶	^7.5	¹⁰	^12.5
^{Dimension LWH}	^m	^3.01.92.4	^3.73.12.7	^4.23.23.0	^4.33.23.1
^{Machine Weight}	^T	⁵	^8.5	¹²	¹⁴
^{Total Power}	^Kw	⁴⁵	⁶⁰	⁹⁰	⁹³

Equipment Details :

　Control System

SIEMENS human-machine interface : Providing easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, so malfunctions can be displayed on the screen.
BECKHOFF Germany human-machine interface : Machine interface and parison programmer can adjust within 300 points.
MOOG parison programmer : Parison control system uses MOOG 100 points passion programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.

　Extrusion and Die Head

Our extruder screw and barrel, provide high output, smooth plastization, wearable and long life. The gear box is the kind of product specially used for plastic extrasion.
We supply stable and different kinds of single/multi-layer continuous/accumulating type die head. Fit for customer’s requirement for different high molecular material and different no of layer.

　Blowing System

Up-blowing unit : Use for continuous type blow molding machine.
Bottom-blowing unit : Use for accumulating type blow molding machine.

　Output System

Finished product take out robot.
Together scrap collect, convey, crusher into one unit.

　Hydraulic System

YUKEN hydraulic controlling system : Used servo-controlled technology to control the movements of actuators, has follow advantages : quickly response and highly energy-efficiency.
Optional REXROTH and GEFRAN hydraulic system : Could save about 50% energy.

　Opening and Closing System

Toggle struction
Common three platen and three tie bar struction

　Lubrication System

Auto-lubrication system can lubricate the system with a set cycle automatically.

　Electric System

SIEMENS : CPU unit, temperature-control unit, digital-output unit, analog-output unit
MITSUBISH I: CPU unit
ABB : Invertor revolving speed-control
Schneider : Electric components
