11-110 Kw Plastic Recycle Machine 380V Voltage Single Screw 3000 Kg Weight

Model Number : JWL

Certification : CE、ISO

Place of Origin : China

MOQ : 1 set

Price : Depends on different model

Payment Terms : L/C, T/T

Supply Ability : 10 sets / 90 days

Delivery Time : 120 days

Packaging Details : Without package or wooden

Material : PP, PE, PS, ABS, PC

Screw Type : Single

Capacity : 30-350 kg/h

Voltage : 380V

Power : 11-110 kw

Weight : 3000 kg

Contact Now

Description Of JWL Pelletizing Machine :

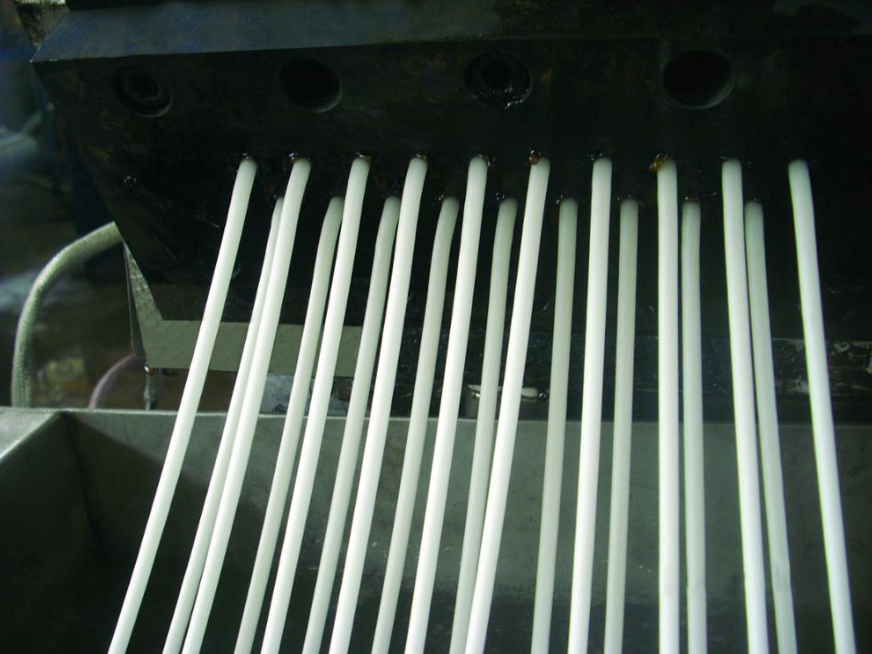

Model JWL series has special screw design and different configuration, it is suitable for recycling PP, PE, PS, PC, ABS etc. The gearbox is high torque designed which attains the functions of low noise and stable operation. The surface of the screw and barrel have been special treated is wearable and have good plasticization, mixing effeciency, high production capacity. The extruder has vacuum vented design which can exhaust the vapor or gas during the production, so that the output are more stable and the pellets are more uniform.

Main Technical Parameters
Model	Screw Dia.	L/D	Screw Speed	Power Of Main Motor	Output
Unit	mm		rpm	Kw	Kg/h
JWL45	45	25-35	20-100	11-15	30-50
JWL65	65	25-35	20-100	30-37	60-120
JWL90	90	25-35	20-90	45-55	180-200
JWL120	120	25-35	20-75	75-110	250-350
JWL150	150	25-35	20-75	110-160	350-500
JWL160	160	25-35	20-70	132-185	400-550
JWL180	180	25-35	20-70	200-250	600-800
JWL200	200	25-35	20-60	250-315	800-1100
